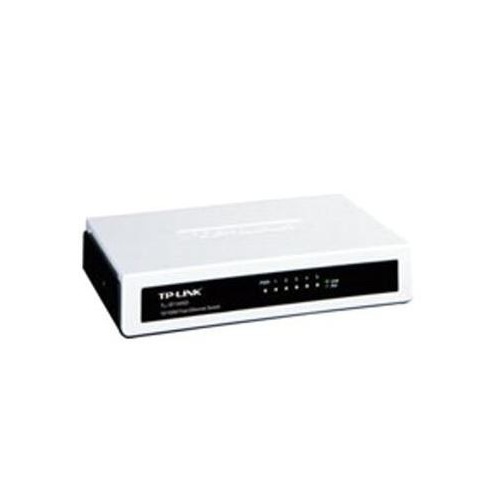

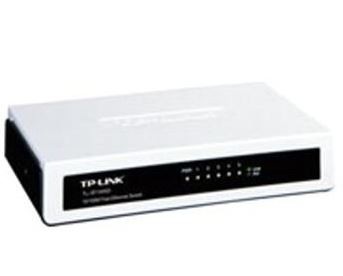

TP-Link LAN SW 5-P TL-SF1005D

5-port 10/100M Fast Ethernet Desktop Switch

Features:

• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
• Supports MAC address auto-learning and auto-aging
• LED indicators for monitoring power, link, activity
• Plastic case, desktop or wall-mounting design
• External Power Adapter supply


Technical specifications:

Standards and Protocols
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP

Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Backbound Bandwidth
1 Gbps

MAC Address Table
1k

Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port

Transmission Method
Store-and-Forward

Ports
5 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ù STP (maximum 100 m)
100Base-Tx: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)

LED Indicators
Power, Link/Act (1, 2, 3, 4, 5)

Safety & Emission
FCC, CE

Dimensions (W*D*H)
5.5 x 3.4 x 1.1 in. (140 x 87 x 27.5 mm)

Environment
Operating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
Storage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing

Power
External Power Adapter
